Timing Chain — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,194HTML edition
← Chapter contentsManual collection

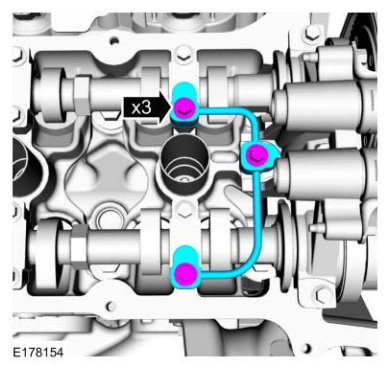

Timing Chain — original illustration 1, reference 5194Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

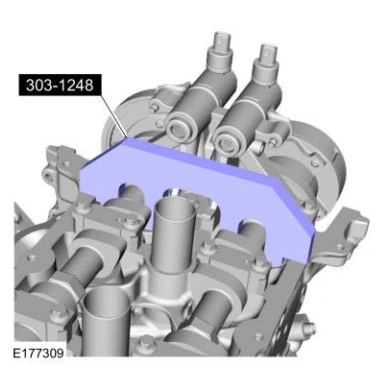

6. Install Special Service Tool: 303-1248 Camshaft holding tools.

Timing Chain — original illustration 2, reference 5194Original colors & callouts · Select to enlarge

NOTE: The following 3 steps are for timing chains that the colored links are not visible.

7. Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown in illustration.
