Timing Chain — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,197HTML edition

← Chapter contents Manual collection

Timing Chain — original illustration 1, reference 5197Original colors & callouts · Select to enlarge

12. Remove the bolts and the lower LH timing chain guide.

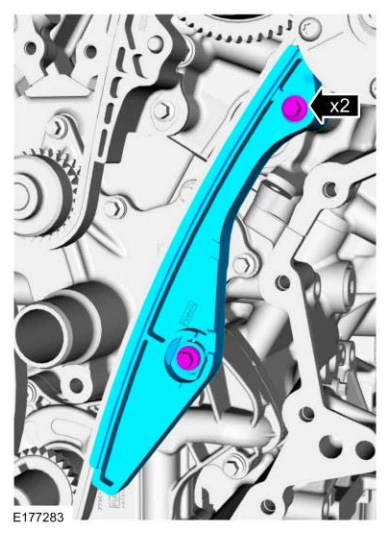

Timing Chain — original illustration 2, reference 5197Original colors & callouts · Select to enlarge

NOTE: Removal of the VCT oil control solenoid will aid in the removal of the timing chain.
