Timing Chain — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5198

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoids.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

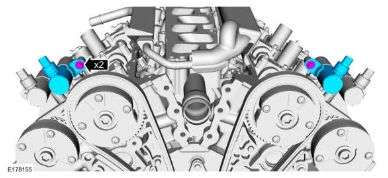

13. Remove the bolts and the VCT oil control solenoids.

Timing Chain — original illustration 1, reference 5198Original colors & callouts · Select to enlarge

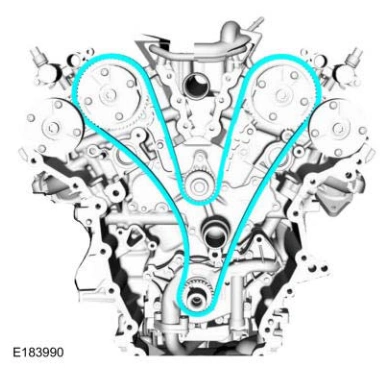

14. Remove the timing chain.

Timing Chain — original illustration 2, reference 5198Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > TIMING CHAIN > INSTALLATION

NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

1. Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.
