Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5321

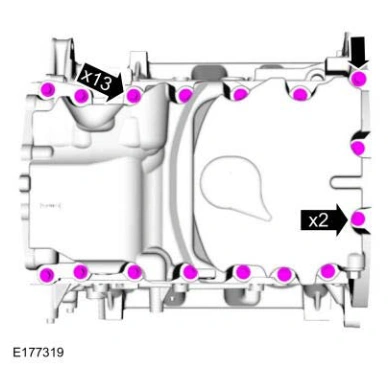

119. Remove the oil pan bolts.

Engine — original illustration 1, reference 5321Original colors & callouts · Select to enlarge

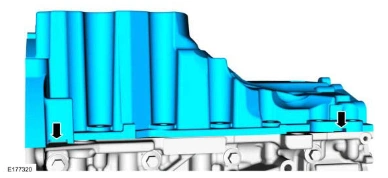

120. Using a pry tool, locate the pry pads at the LH and RH side of the oil pan and pry the oil pan loose and remove.

Engine — original illustration 2, reference 5321Original colors & callouts · Select to enlarge

NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the oil pan and engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

121. Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B
