Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,323HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5323Original colors & callouts · Select to enlarge

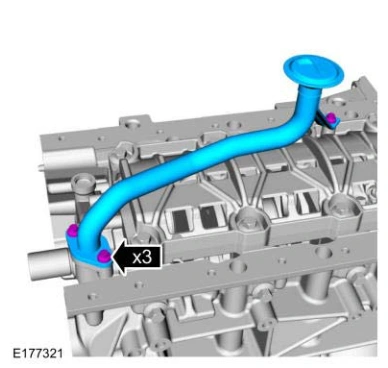

123. Remove the bolts and the oil pump screen and pickup tube.

Engine — original illustration 2, reference 5323Original colors & callouts · Select to enlarge

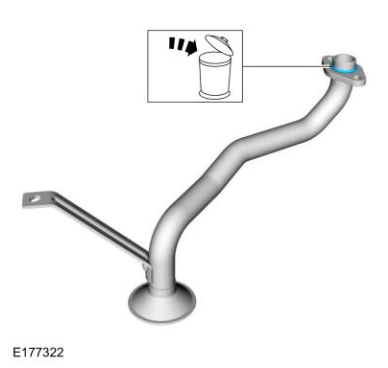

124. Remove and discard the oil pump screen and pickup tube O-ring seal.

Engine — original illustration 3, reference 5323Original colors & callouts · Select to enlarge

125. Remove the bolts and the oil pump.
