Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5326

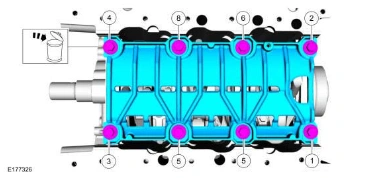

Engine — original illustration 1, reference 5326Original colors & callouts · Select to enlarge

NOTE: The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.

NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

130. Remove the connecting rod cap bolts and caps.

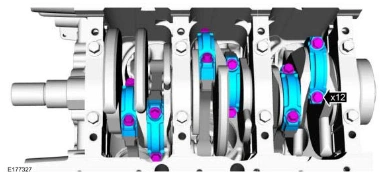

Engine — original illustration 2, reference 5326Original colors & callouts · Select to enlarge

NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod while removing the pistons.

131. Remove the piston/rod assembly from the engine block.
