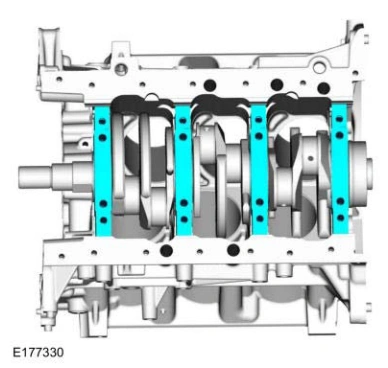

134. Remove the main bearing caps.

Engine — original illustration 1, reference 5328Original colors & callouts · Select to enlarge

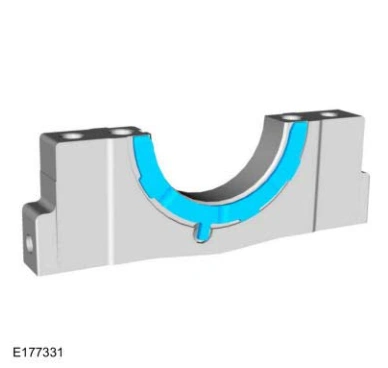

135. Remove the lower crankshaft thrust washer from the back side of the No. 4 rear main bearing cap.

Engine — original illustration 2, reference 5328Original colors & callouts · Select to enlarge

NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

136. Remove the crankshaft main bearings from the main bearing caps.
