Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,330HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5330Original colors & callouts · Select to enlarge

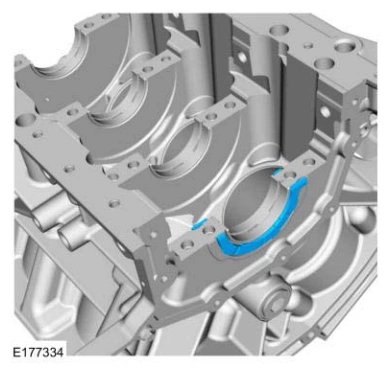

NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

139. Remove the crankshaft main bearings from the cylinder block.

Engine — original illustration 2, reference 5330Original colors & callouts · Select to enlarge

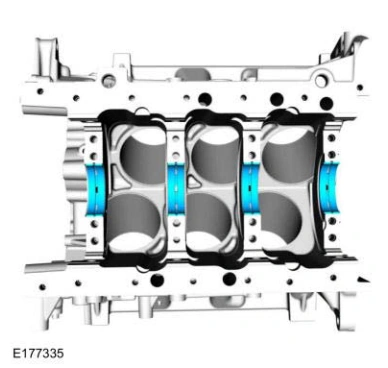

140. Using a hex bit, remove the piston oil cool valves.
