Disassembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,332HTML edition
← Chapter contentsManual collection

303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal

Disassembly — original illustration 1, reference 5332Original colors & callouts · Select to enlarge

TKIT-1994-FH/FMH/FLMH

TKIT-1994-LMH/MH2

TKIT-2009TC-F

Materials

Name

Specification

Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.)

WSS-M2C945-A

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > CYLINDER HEAD >

DISASSEMBLY

NOTE: If replacing the cylinder head, do not reuse the secondary timing chain tensioners, they must be replaced or damage to the engine may occur. Refer to Variable Camshaft Timing (VCT) Unit .

LH cylinder head

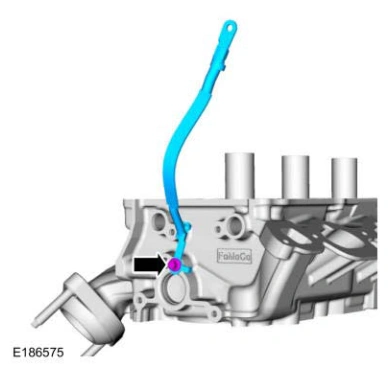

1. Remove the bolt and ground strap.

Disassembly — original illustration 2, reference 5332Original colors & callouts · Select to enlarge

2. Remove the bolts and the exhaust manifold heat shield.

Ford_Mustang_all_2015-2017.pdf · source reference 5332
