Disassembly — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5334

Remove the nuts and the exhaust manifold.

Discard the nuts.

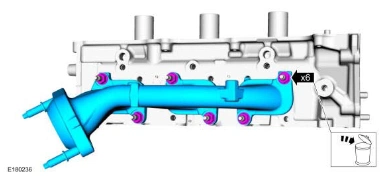

Disassembly — original illustration 1, reference 5334Original colors & callouts · Select to enlarge

8. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

9. Remove and discard the studs and the exhaust manifold gasket.

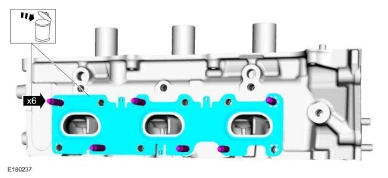

Disassembly — original illustration 2, reference 5334Original colors & callouts · Select to enlarge

10. Remove the timing chain tensioner arm and timing chain guide pins.

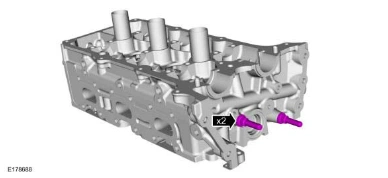

Disassembly — original illustration 3, reference 5334Original colors & callouts · Select to enlarge

11. Remove and discard the CHT sensor.
