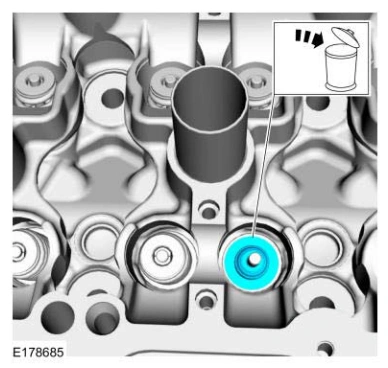

Assembly — original illustration 1, reference 5336Original colors & callouts · Select to enlarge

15. Remove the valve.

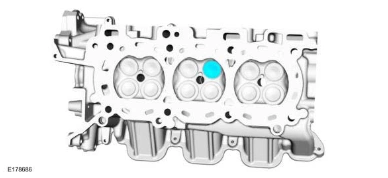

Assembly — original illustration 2, reference 5336Original colors & callouts · Select to enlarge

16. Repeat the previous 3 steps for each valve.

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > CYLINDER HEAD >

ASSEMBLY

All cylinder heads

1. Install the valve.

Assembly — original illustration 3, reference 5336Original colors & callouts · Select to enlarge

2. Lubricate with clean engine oil and using the special tool, install the valve stem seal.
