Assembly — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5339

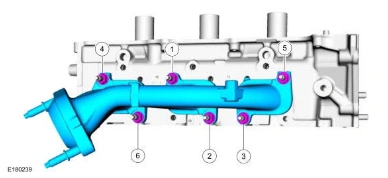

Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 168 lb.in (19 Nm)

Stage 2: 18 lb.ft (25 Nm)

Assembly — original illustration 1, reference 5339Original colors & callouts · Select to enlarge

LH cylinder head

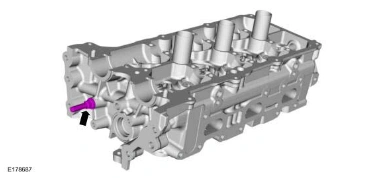

10. Install the timing chain guide pin.

Torque

: 89 lb.in (10 Nm)

Assembly — original illustration 2, reference 5339Original colors & callouts · Select to enlarge

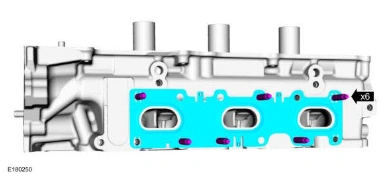

11. Install the new the exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

Install a new exhaust manifold gasket.

Assembly — original illustration 3, reference 5339Original colors & callouts · Select to enlarge

12.
