Assembly — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5337

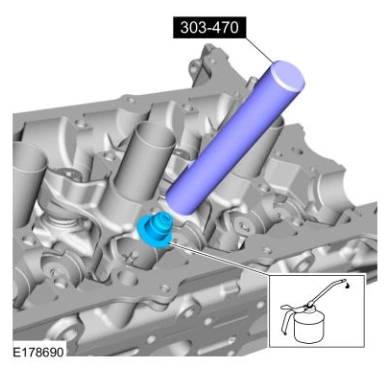

Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Assembly — original illustration 1, reference 5337Original colors & callouts · Select to enlarge

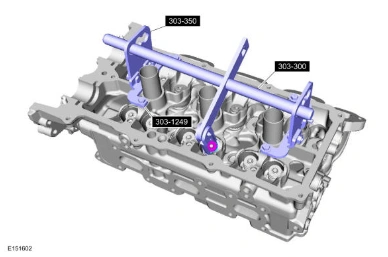

3. Using the special tools, install the valve spring, valve spring retainer and the valve collet.

Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-1249 Valve Spring Compressor.

Assembly — original illustration 2, reference 5337Original colors & callouts · Select to enlarge

4. Repeat the previous 3 steps for each valve.

5. Install the spark plugs. Refer to: SPARK PLUGS .

RH cylinder head

6. Install the timing chain tensioner arm and timing chain guide pins.

Torque
