Assembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,338HTML edition
← Chapter contentsManual collection

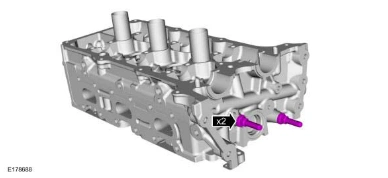

: 89 lb.in (10 Nm)

Assembly — original illustration 1, reference 5338Original colors & callouts · Select to enlarge

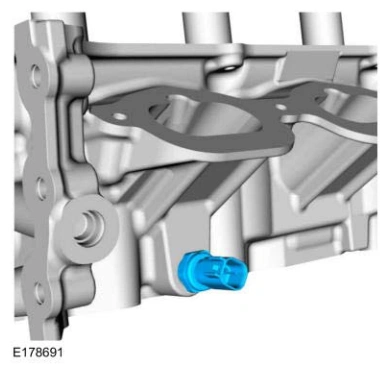

7. Install a new CHT sensor.

Torque

: 89 lb.in (10 Nm)

Assembly — original illustration 2, reference 5338Original colors & callouts · Select to enlarge

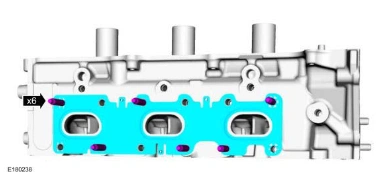

8. Install the new the exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

Install a new exhaust manifold gasket.

Assembly — original illustration 3, reference 5338Original colors & callouts · Select to enlarge

9.

Ford_Mustang_all_2015-2017.pdf · source reference 5338
