Piston — Disassembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,341HTML edition
← Chapter contentsManual collection

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON

Materials

Name

Specification

Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.)

WSS-M2C945-A

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON > DISASSEMBLY

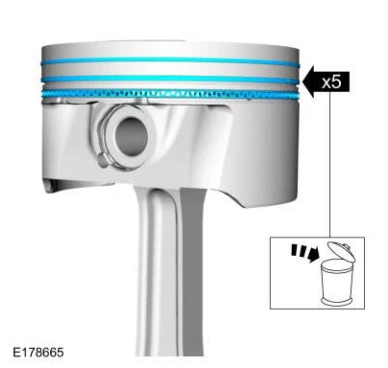

1. Remove the piston rings and discard.

Piston — original illustration 1, reference 5341Original colors & callouts · Select to enlarge

2. Remove the piston pin retainers and discard.

Remove the piston pin.

Ford_Mustang_all_2015-2017.pdf · source reference 5341
