Piston — Assembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,344HTML edition
← Chapter contentsManual collection

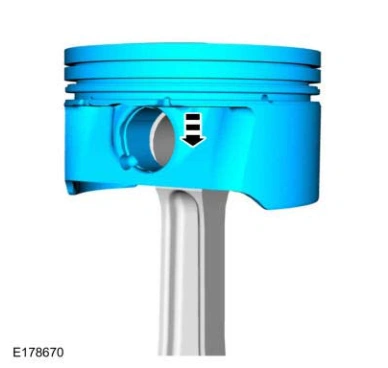

Piston — original illustration 1, reference 5344Original colors & callouts · Select to enlarge

3. Lubricate with clean engine oil and install the piston pin.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

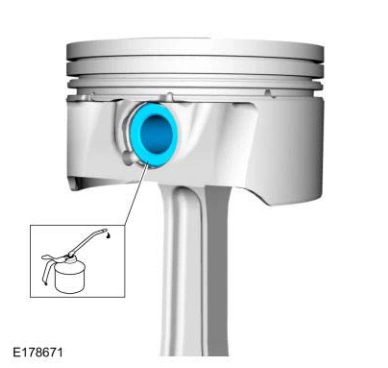

Piston — original illustration 2, reference 5344Original colors & callouts · Select to enlarge

NOTE: The piston pin retaining clip gap orientation must be toward the top or dome of piston.

4. Install the piston pin retainers.
