Piston — Assembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,345HTML edition
← Chapter contentsManual collection

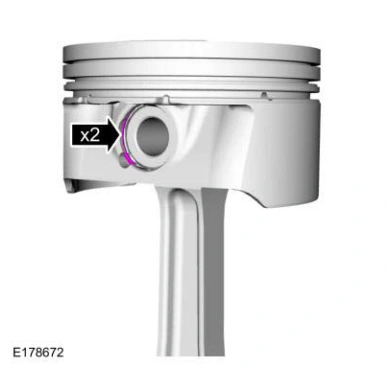

Piston — original illustration 1, reference 5345Original colors & callouts · Select to enlarge

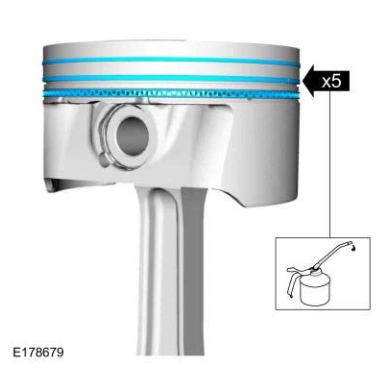

5. Lubricate with clean engine oil and install the piston rings.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Piston — original illustration 2, reference 5345Original colors & callouts · Select to enlarge

NOTE: The arrow on the top of the piston indicates the front of the engine.

NOTE: The piston compression upper and lower ring should be installed with the "O" mark on the ring face pointing up toward the top of the piston.

6.

1. Center line of the piston parallel to the wrist pin bore.

Ford_Mustang_all_2015-2017.pdf · source reference 5345
