Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5346

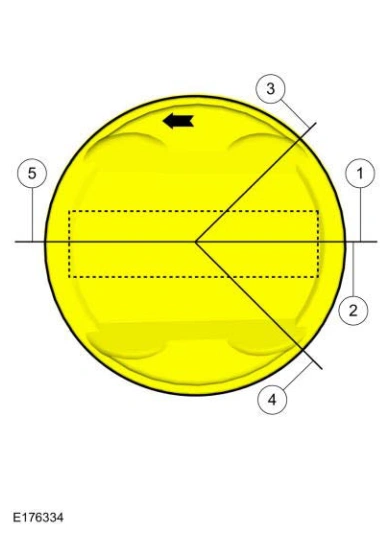

2. Upper compression ring gap location.

3. Upper oil control segment ring gap location.

4. Lower oil control segment ring gap location.

5. Expander ring and lower compression ring gap location.

Engine — original illustration 1, reference 5346Original colors & callouts · Select to enlarge

ASSEMBLY > ENGINE

Special Tool(s) / General Equipment

Engine — original illustration 2, reference 5346Original colors & callouts · Select to enlarge

100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
