NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: Assembly of the engine requires various inspections/measurements of the engine components. These inspections/measurements will aid in determining if the engine components will require replacement. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
NOTE: If the cylinder head(s) is replaced, a new secondary timing chain tensioner will need to be installed. Refer to Variable Camshaft Timing (VCT) Unit .
6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

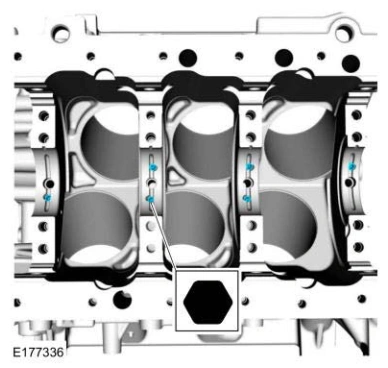

1. Using a hex bit, install the piston oil cool valves.
Torque
: 35 lb.in (4 Nm)
NOTE: This step is for selecting the correct main bearings.
NOTE: The #1 main bearing is at the front of the engine block.
2. Select the crankshaft main bearings for each crankshaft journal.
