Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,351HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5351Original colors & callouts · Select to enlarge

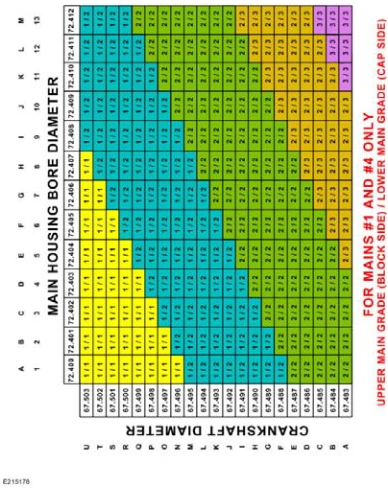

NOTE: This chart in the illustration is for selecting main bearings 1 and 4 only.

4.

Engine — original illustration 2, reference 5351Original colors & callouts · Select to enlarge

NOTE: This chart is continued in the next step.

NOTE: This chart is for selecting main bearings 2 and 3 only.

5.
