Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5354

Engine — original illustration 1, reference 5354Original colors & callouts · Select to enlarge

9. Remove the bolts and the rod cap.

Discard the bolts.

Engine — original illustration 2, reference 5354Original colors & callouts · Select to enlarge

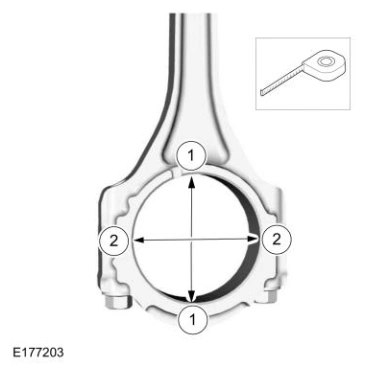

10. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.

Ford_Mustang_all_2015-2017.pdf · source reference 5354
