Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5357

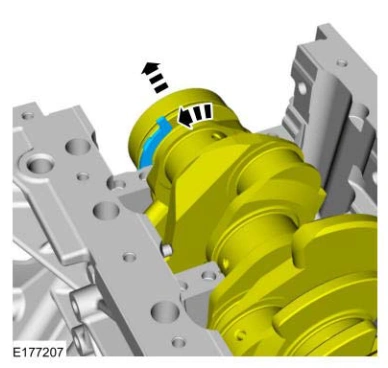

Engine — original illustration 1, reference 5357Original colors & callouts · Select to enlarge

NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

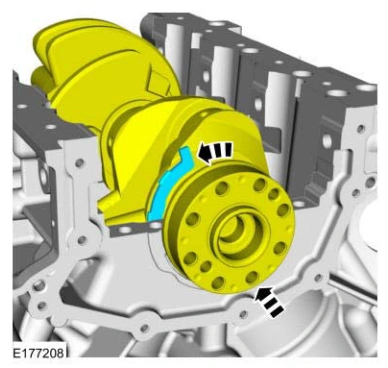

15. Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.

Engine — original illustration 2, reference 5357Original colors & callouts · Select to enlarge

16. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Check seating and squareness of the bearings to make sure of proper seating in caps.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
