Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5359

Engine — original illustration 1, reference 5359Original colors & callouts · Select to enlarge

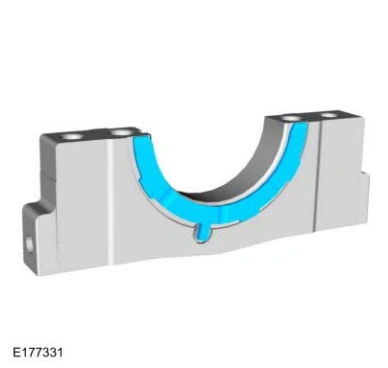

19. Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.

Engine — original illustration 2, reference 5359Original colors & callouts · Select to enlarge

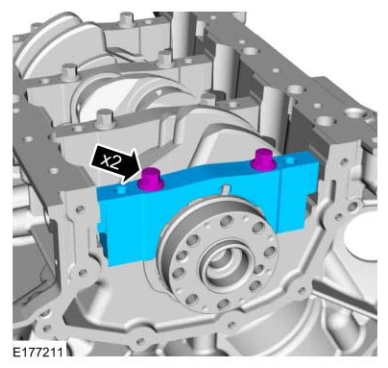

NOTE: While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.

20. Tighten the main bearing bolts.

Torque:

Stage 1: 24 lb.ft (33 Nm)

Stage 2: 135°
