Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5361

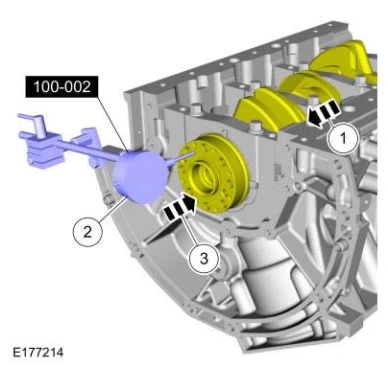

3. Move the crankshaft to the front of the cylinder block. Measure and record the crankshaft end play.

Engine — original illustration 1, reference 5361Original colors & callouts · Select to enlarge

NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

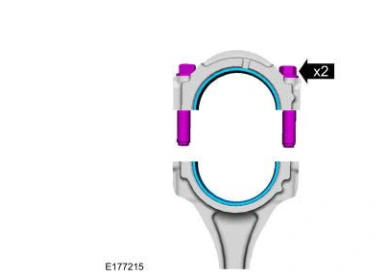

23. Prepare the connecting rod and cap.

Insert the new bolts in the rod cap.

Insert the upper and lower rod bearings into the rod and cap.

Engine — original illustration 2, reference 5361Original colors & callouts · Select to enlarge

NOTE: The arrow on the top of the piston indicates the front of the engine.

NOTE: The piston compression upper and lower ring should be installed with the "O" mark on the ring face pointing up toward the top of the piston.

24.
