Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5362

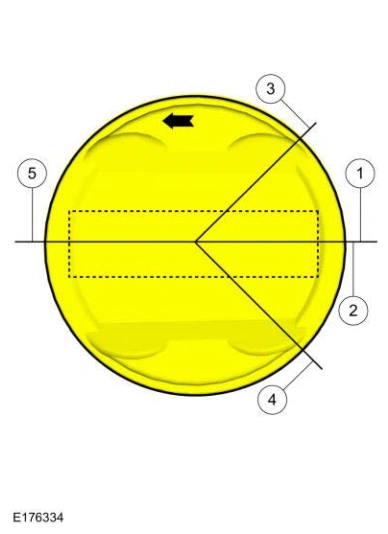

1. Center line of the piston parallel to the wrist pin bore.

2. Upper compression ring gap location.

3. Upper oil control segment ring gap location.

4. Lower oil control segment ring gap location.

5. Expander ring and lower compression ring gap location.

Engine — original illustration 1, reference 5362Original colors & callouts · Select to enlarge

NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.

NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.

NOTE: Make sure the piston rings are positioned to specifications for installation.
