Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5360

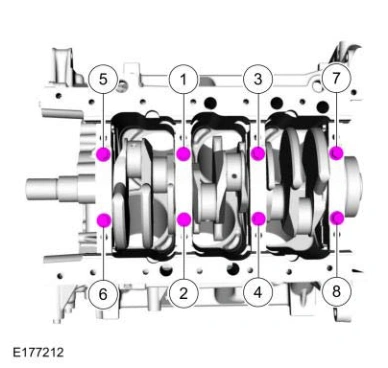

Engine — original illustration 1, reference 5360Original colors & callouts · Select to enlarge

21. Install the new main bearing cap side bolts.

Torque:

Stage 1: 33 lb.ft (45 Nm)

Stage 2: 90°

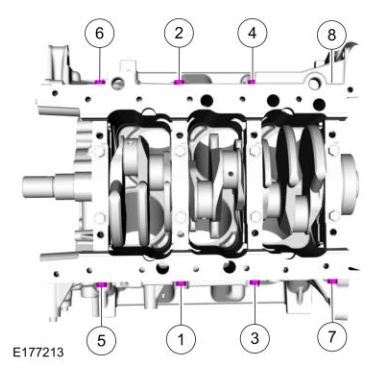

Engine — original illustration 2, reference 5360Original colors & callouts · Select to enlarge

22.

1. Position the crankshaft to the rear of the cylinder block.

Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

2. Zero the Dial Indicator Gauge.

Ford_Mustang_all_2015-2017.pdf · source reference 5360
