Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5358

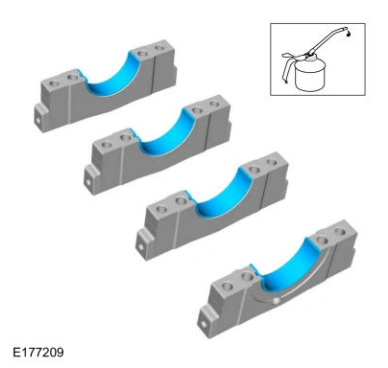

Engine — original illustration 1, reference 5358Original colors & callouts · Select to enlarge

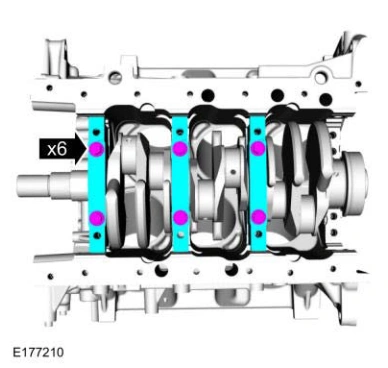

17. Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.

Engine — original illustration 2, reference 5358Original colors & callouts · Select to enlarge

NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

18. Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.
