Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5355

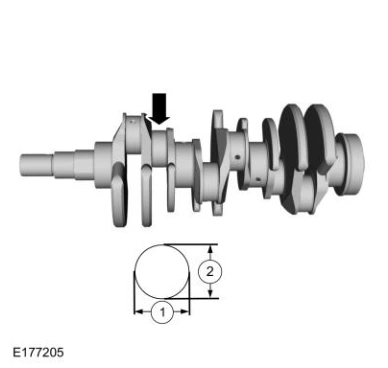

Engine — original illustration 1, reference 5355Original colors & callouts · Select to enlarge

11. Using the chart in illustration, select the correct connecting rod bearings for each crankshaft connecting rod journal.

Engine — original illustration 2, reference 5355Original colors & callouts · Select to enlarge

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

12. Lubricate the upper crankshaft main bearings with clean engine oil and install in the cylinder block.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Ford_Mustang_all_2015-2017.pdf · source reference 5355
