Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,356HTML edition
← Chapter contentsManual collection

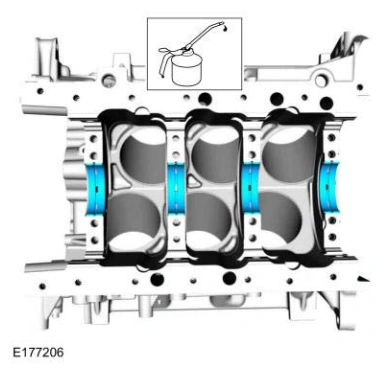

Engine — original illustration 1, reference 5356Original colors & callouts · Select to enlarge

NOTE: Do not install the upper thrust bearings until the crankshaft is installed.

NOTE: Lubricate the thrust surfaces of the crankshaft with clean engine oil.

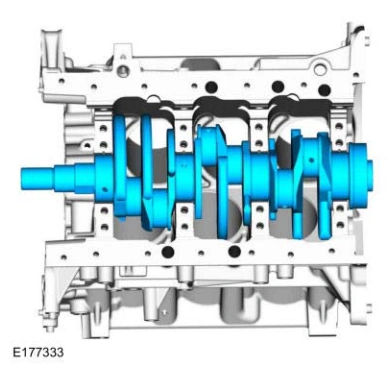

13. Install the crankshaft.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 2, reference 5356Original colors & callouts · Select to enlarge

NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

14. Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.
