Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5364

Engine — original illustration 1, reference 5364Original colors & callouts · Select to enlarge

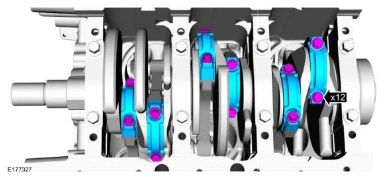

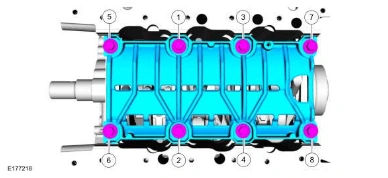

27. Install the main bearing cap support brace and the new bolts.

Torque:

Stage 1: 18 lb.ft (24 Nm)

Stage 2: 180°

Engine — original illustration 2, reference 5364Original colors & callouts · Select to enlarge

NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 4 minutes of sealant application.

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

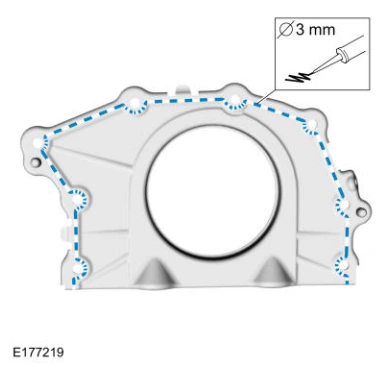

28. Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

Engine — original illustration 3, reference 5364Original colors & callouts · Select to enlarge
