Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,367HTML edition
← Chapter contentsManual collection

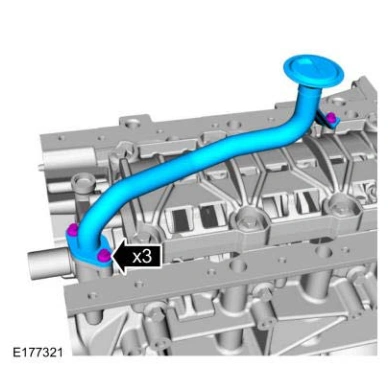

Engine — original illustration 1, reference 5367Original colors & callouts · Select to enlarge

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

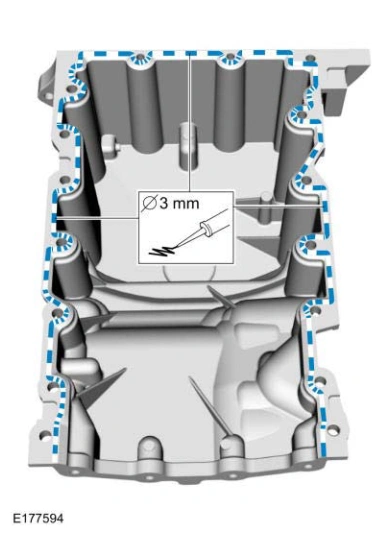

34. Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

Engine — original illustration 2, reference 5367Original colors & callouts · Select to enlarge

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

35. Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

Ford_Mustang_all_2015-2017.pdf · source reference 5367
