Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5370

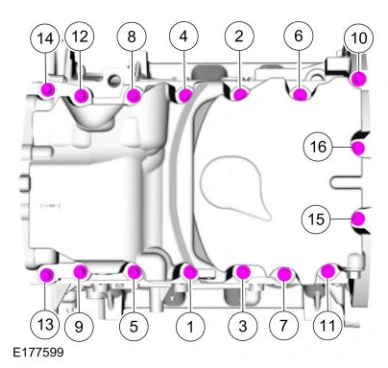

Stage 3: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm)

Engine — original illustration 1, reference 5370Original colors & callouts · Select to enlarge

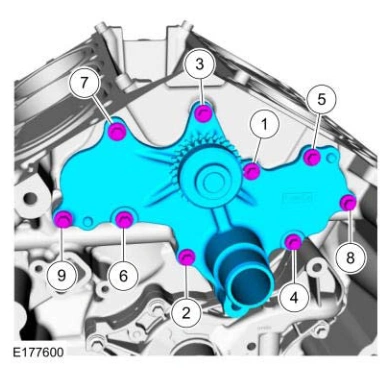

40. Install the channel cover plate and the bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Engine — original illustration 2, reference 5370Original colors & callouts · Select to enlarge

41. Install the KS and the bolts.

Torque

: 177 lb.in (20 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5370
