Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5372

Engine — original illustration 1, reference 5372Original colors & callouts · Select to enlarge

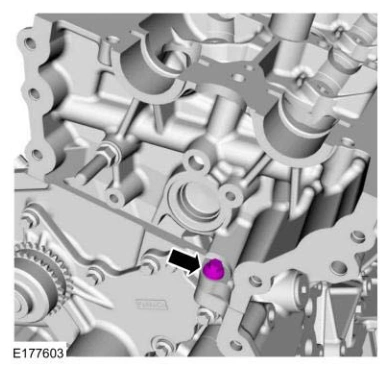

44. Install the M6 bolt.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 2, reference 5372Original colors & callouts · Select to enlarge

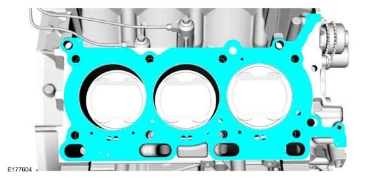

45. Install the RH cylinder head gasket.

Engine — original illustration 3, reference 5372Original colors & callouts · Select to enlarge

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

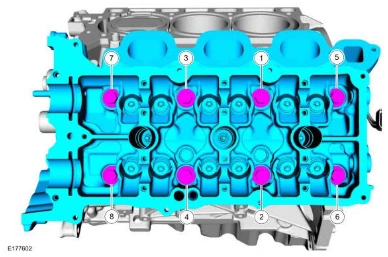

46. Install the cylinder head and the new bolts.
