Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5374

NOTE: RH shown in illustration, LH similar.

48. Install the valve tappets.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

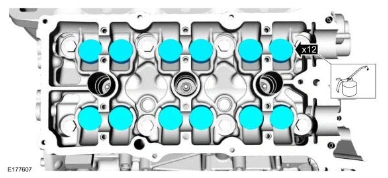

Engine — original illustration 1, reference 5374Original colors & callouts · Select to enlarge

49. Install the RH primary timing chain guide and the bolt.

Torque

: 89 lb.in (10 Nm)

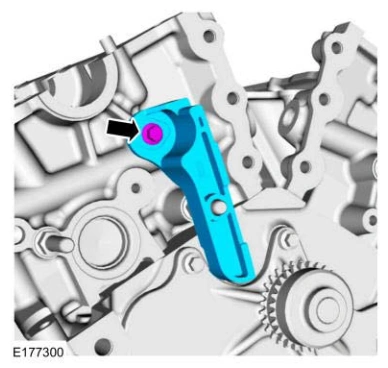

Engine — original illustration 2, reference 5374Original colors & callouts · Select to enlarge

NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

50. Position the crankshaft dowel pin in the 9 o'clock position.
