Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5377

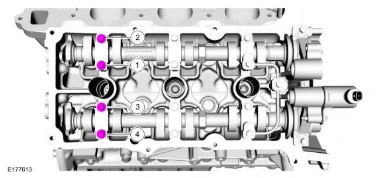

Tighten the camshaft cap bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

Engine — original illustration 1, reference 5377Original colors & callouts · Select to enlarge

NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.

NOTE: Use a camshaft sprocket bolt to turn the camshafts.

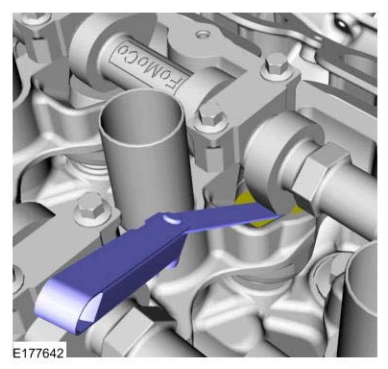

56. Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment .

Use the General Equipment: Feeler Gauge

Engine — original illustration 2, reference 5377Original colors & callouts · Select to enlarge

57. Remove the bolts and the oil tube.
