Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5376

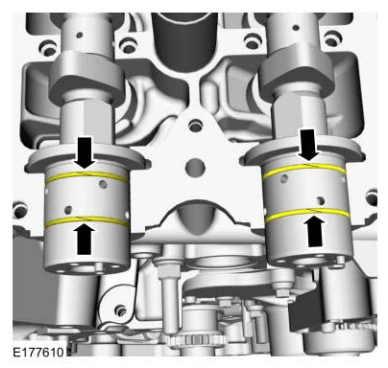

52. Position the RH camshaft seals gaps as shown in illustration.

Engine — original illustration 1, reference 5376Original colors & callouts · Select to enlarge

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

53. Install the camshaft caps, oil tube and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

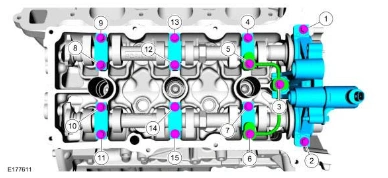

Engine — original illustration 2, reference 5376Original colors & callouts · Select to enlarge

54. Loosen the camshaft cap bolts.

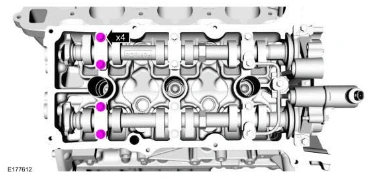

Engine — original illustration 3, reference 5376Original colors & callouts · Select to enlarge

55.
