Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5373

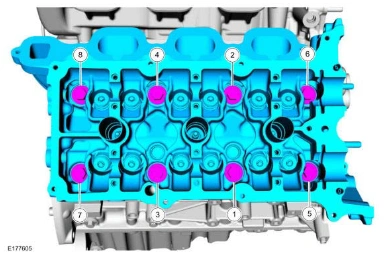

Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 26 lb.ft (35 Nm)

Stage 3: 90°

Stage 4: 90°

Stage 5: 45°

Engine — original illustration 1, reference 5373Original colors & callouts · Select to enlarge

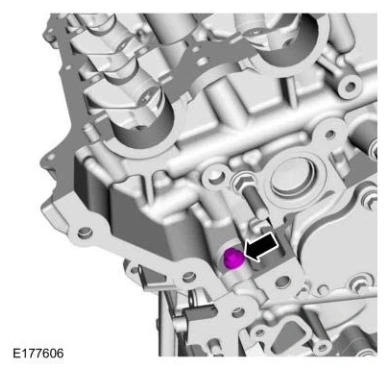

47. Install the M6 bolt.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 2, reference 5373Original colors & callouts · Select to enlarge

NOTE: The valve tappets must be installed in their original positions.

NOTE: Coat the valve tappets with clean engine oil prior to installation.
