Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5371

Engine — original illustration 1, reference 5371Original colors & callouts · Select to enlarge

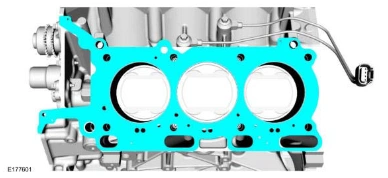

42. Install the LH cylinder head gasket.

Engine — original illustration 2, reference 5371Original colors & callouts · Select to enlarge

NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

43. Install the cylinder head and the new bolts.

Torque:

Stage 1: 177 lb.in (20 Nm)

Stage 2: 26 lb.ft (35 Nm)

Stage 3: 90°

Stage 4: 90°

Stage 5: 45°

Ford_Mustang_all_2015-2017.pdf · source reference 5371
