Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5368

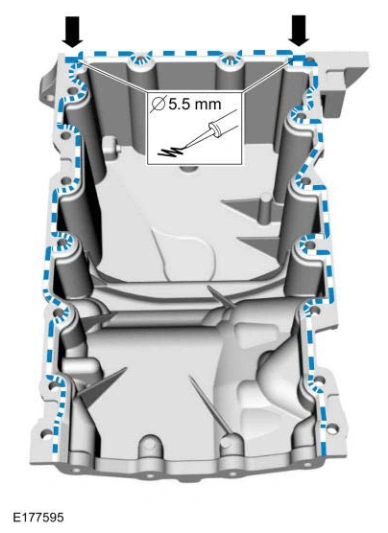

Engine — original illustration 1, reference 5368Original colors & callouts · Select to enlarge

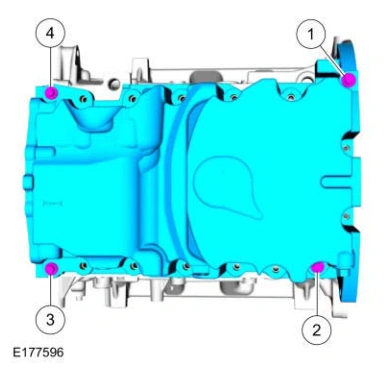

36. Install the oil pan and bolts.

Torque:

Stage 1: 27 lb.in (3 Nm)

Stage 2: Loosen: 180°

Engine — original illustration 2, reference 5368Original colors & callouts · Select to enlarge

37. Using a straight edge, align the oil pan flush with the rear of the cylinder block at the 2 areas shown in illustration.

Use the General Equipment: Round-Ended Steel Rule
