Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5369

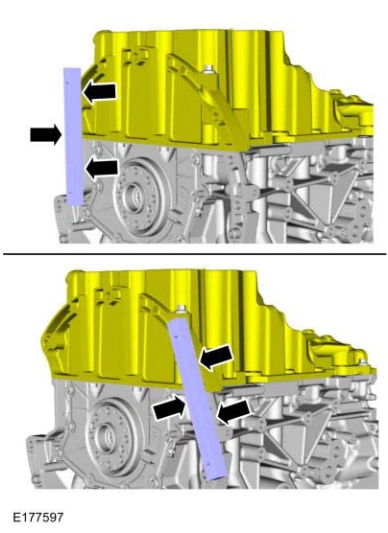

Engine — original illustration 1, reference 5369Original colors & callouts · Select to enlarge

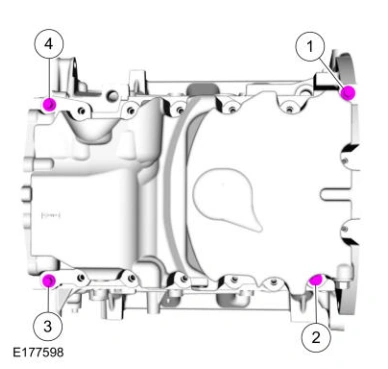

38. Tighten the bolts in the sequence.

Torque

: 27 lb.in (3 Nm)

Engine — original illustration 2, reference 5369Original colors & callouts · Select to enlarge

39. Install the remaining oil pan bolts.

Torque:

Stage 1: Tighten bolts 1 through 14 to: 18 lb.ft (24 Nm)

Stage 2: Tighten bolt 10 an additional: 90°
