Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5366

Engine — original illustration 1, reference 5366Original colors & callouts · Select to enlarge

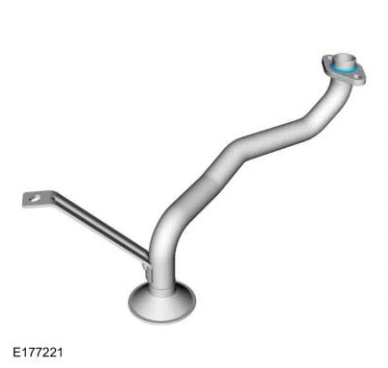

32. Install a new oil pump screen and pickup tube O-ring seal.

Engine — original illustration 2, reference 5366Original colors & callouts · Select to enlarge

33. Install the oil pump screen and pickup tube and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5366
