Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5365

29. Lubricate the crankshaft rear seal with clean engine oil.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

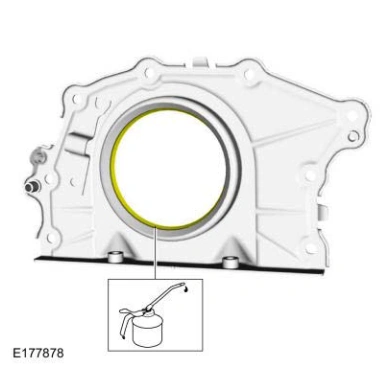

Engine — original illustration 1, reference 5365Original colors & callouts · Select to enlarge

30. Install the crankshaft rear seal and the bolts.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 2, reference 5365Original colors & callouts · Select to enlarge

31. Install the oil pump and the bolts.

Torque

: 89 lb.in (10 Nm)
