Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,375HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5375Original colors & callouts · Select to enlarge

NOTE: Coat the camshafts with clean engine oil prior to installation.

51. Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown in illustration.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

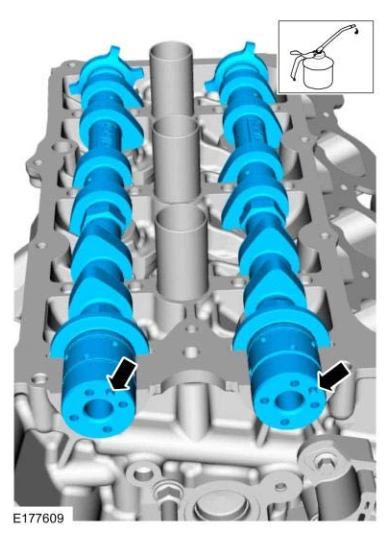

Engine — original illustration 2, reference 5375Original colors & callouts · Select to enlarge

NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

Ford_Mustang_all_2015-2017.pdf · source reference 5375
