Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5378

Engine — original illustration 1, reference 5378Original colors & callouts · Select to enlarge

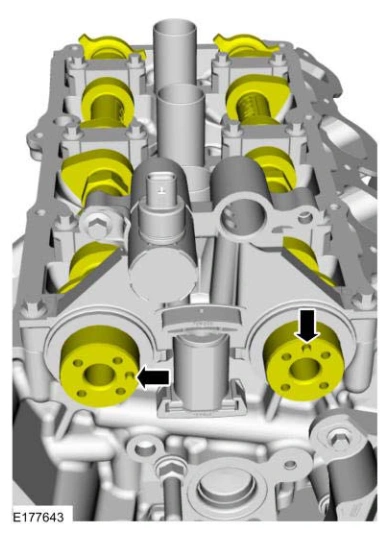

58. Rotate the RH camshafts to TDC.

Engine — original illustration 2, reference 5378Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

59. Install Special Service Tool: 303-1248 Camshaft holding tools.

Ford_Mustang_all_2015-2017.pdf · source reference 5378
