Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5379

Engine — original illustration 1, reference 5379Original colors & callouts · Select to enlarge

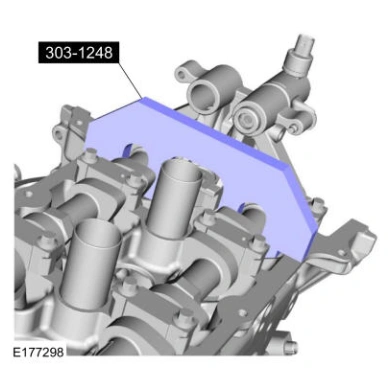

NOTE: The VCT oil control solenoids are removed for clarity.

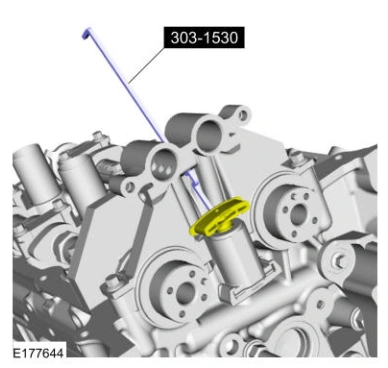

60. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Engine — original illustration 2, reference 5379Original colors & callouts · Select to enlarge

61. Align the colored links with the timing marks and assemble the RH VCT units.
