Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,382HTML edition
← Chapter contentsManual collection

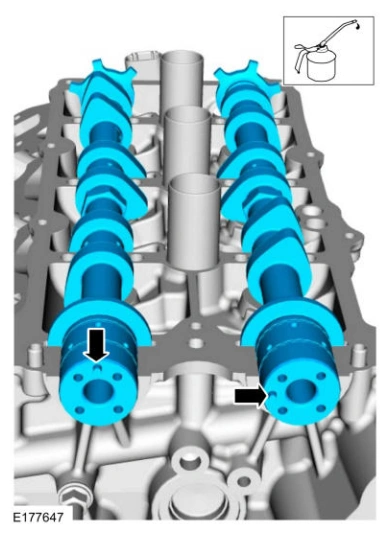

Engine — original illustration 1, reference 5382Original colors & callouts · Select to enlarge

NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

66. Position the LH camshaft seals gaps as shown in illustration.

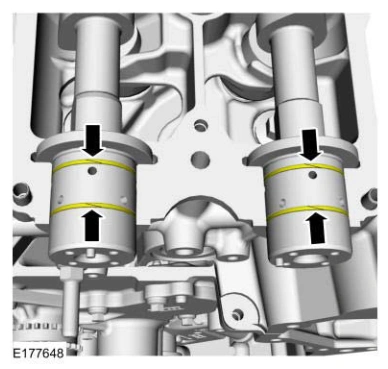

Engine — original illustration 2, reference 5382Original colors & callouts · Select to enlarge

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

67. Install the camshaft caps, oil tube and the bolts.

Torque:

Ford_Mustang_all_2015-2017.pdf · source reference 5382
