Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,385HTML edition
← Chapter contentsManual collection

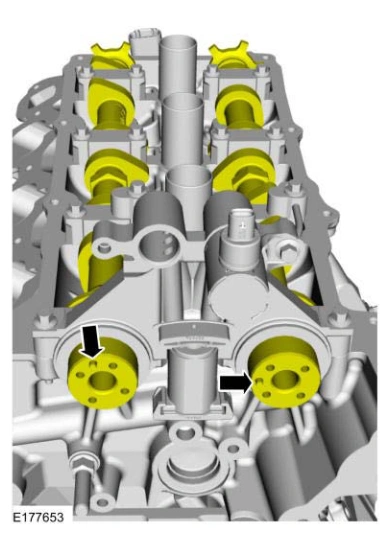

Engine — original illustration 1, reference 5385Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

73. Install Special Service Tool: 303-1248 Camshaft holding tools.

Engine — original illustration 2, reference 5385Original colors & callouts · Select to enlarge

NOTE: The VCT oil control solenoids are removed for clarity.

74. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
