Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,386HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5386Original colors & callouts · Select to enlarge

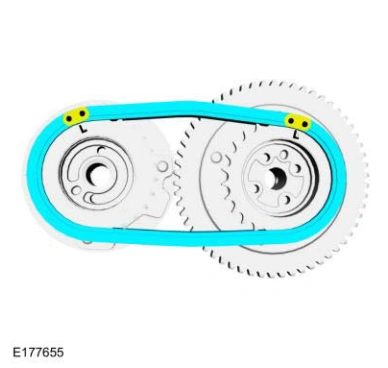

75. Align the colored links with the timing marks and assemble the LH VCT units.

Engine — original illustration 2, reference 5386Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

76. Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.
