Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5388

Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

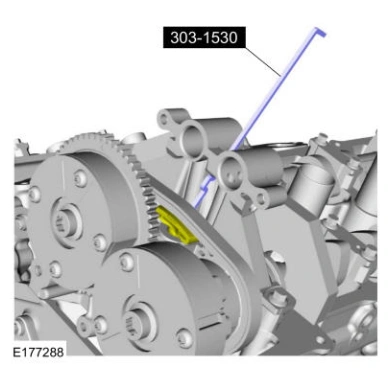

Engine — original illustration 1, reference 5388Original colors & callouts · Select to enlarge

79. Install the LH upper primary timing chain guide and the bolt.

Torque

: 89 lb.in (10 Nm)

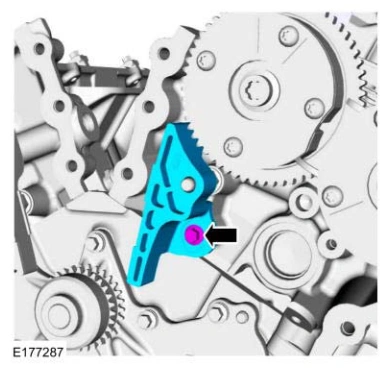

Engine — original illustration 2, reference 5388Original colors & callouts · Select to enlarge

80. Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).
