Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5387

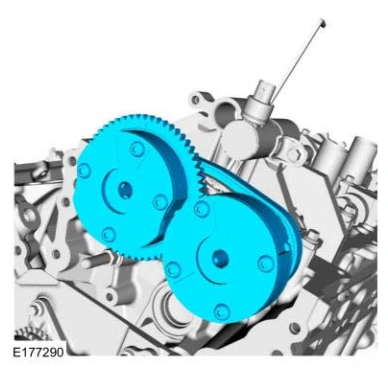

Engine — original illustration 1, reference 5387Original colors & callouts · Select to enlarge

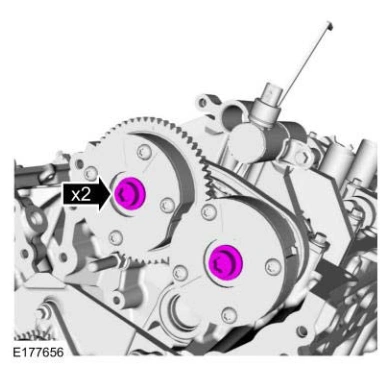

77. Install the new LH VCT unit bolts.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: Loosen: 1 turn(s)

Stage 3: 18 lb.ft (25 Nm)

Stage 4: 180°

Engine — original illustration 2, reference 5387Original colors & callouts · Select to enlarge

NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.

NOTE: The VCT oil control solenoids are removed for clarity.

78.
